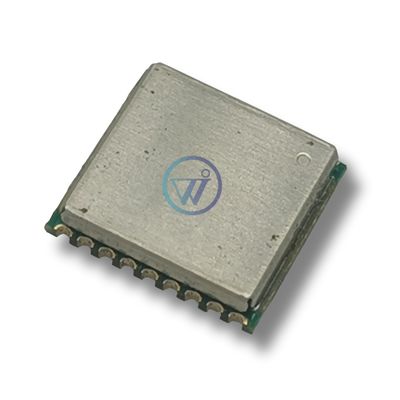

Low Power GNSS GPS Module for IoT Devices Asset Pet Tracking and Wearables

Name: Low Power GNSS GPS Module for IoT Devices Asset Pet Tracking and Wearables
Brand: Shenzhen Youwei Communication Co., Ltd.
SKU: YW-10101Z1, YW-10101Z1
Price: 3.20 USD
Availability: InStock

모델 번호:	YW-10101Z1, YW-10101Z1
MOQ:	10
가격:	$3.20-4

자세한 정보

제품 설명

자세한 정보

원래 장소:

광동, 중국

치수:

10x10x1mm

통신 인터페이스:

I2C, USB, SPI, UART

트래킹 정밀도:

<10m>

감도 추적:

-162dBM

작업 온도:

-40 ° C ~ +85 ° C

수신기 주파수:

GPS L1 C/A SBAS L1 C/A QZSS L1 C/A GLONASS L1OF BEIDOU B1 GALILEO E1B/C²

우선 고정 시간:

핫 스타트 : 1s, 콜드 스타트 : 30 대, 따뜻한 시작 : 28s

보드 비율:

9,600 bps (기본값) 또는 115200bps

최대 탐색율:

1Hz ~ 10Hz

시간 펄스 정확도:

RMS 25 ns

속도 정확도:

0.1 m/s

작동 전압:

3.3V ~ 5V/3.3V ~ 12V

전력 소비:

작동 : 25MA ~ 50MA, 대기 : 1mA ~ 5MA

안테나 유형:

내부 패치 세라믹 안테나

지지 된 위성:

GPS, Glonass, Galileo, Beidou, SBAS, QZSS

강조하다:

IoT Devices GNSS GPS Module

Asset Pet Tracking GPS Module

Wearables GNSS Module

제품 설명

Low Power GNSS GPS Module for IoT Devices Asset Pet Tracking Wearables

YW-10101Z1 GPS Positioning Module Specifications

Parameter	Specification
Model No.	YW-10101Z1
Chipset	Goke, CKS, or appointed
Receiver Frequency	GPS L1 C/A SBAS L1 C/A QZSS L1 C/A GLONASS L1OF BeiDou B1 Galileo E1B/C² (or upon order)
Number of Channels	As per order
Locating Accuracy	Horizontal Accuracy: 2.5 to 5 meters
Time-To-First-Fix	Hot Start Time: 1s \| Cold Start Time: 30s \| Warm Start Time: 28s
Sensitivity	Tracking: -162 dBm \| Acquisition: -160 dBm \| Cold Start: -147dBm
Baud Rate	9,600 bps (Default) or 115200bps
Max Navigation Update Rate	1Hz to 10Hz
Accuracy of Time Pulse Signal	RMS 25 ns
Velocity accuracy	0.1 m/s
Data Output Format	NMEA 0183 standard sentences (GGA, GLL, GSA, GSV, RMC, VTG, ZDA, ANT, DHV, LPS, UTC, GST etc.)
Interface Type	UART, I2C, SPI, USB, etc.
Operating Voltage	3.3V ~ 5V/3.3V~12V
Power Consumption	Operating Current: 25mA to 50mA \| Standby Current: 1mA to 5mA
Operating Temperature Range	-40°C to 85°C
Antenna Type	Internal patch ceramic antenna
Supported Satellite Systems	GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS
Firmware Upgrade	Supported or not supported
Package Type	SMD
Certifications	FCC, CE, RoHS, etc.
Packing way	Baseband Packaging/Tray Packaging

Dual-frequency vs. Single-frequency GPS Module Comparison

A dual-frequency GPS module receives signals on two different frequency bands (typically L1 and L5 for civilian use, or L1 and L2 for military/surveying applications), while a single-frequency module only uses L1.

Advantages of Dual-frequency GPS:

Higher Accuracy - Corrects ionospheric delays, reducing positioning errors to sub-meter or centimeter-level accuracy (vs. ~3-5m for single-frequency)
Better Signal Reliability - Less affected by multipath interference and urban canyon effects
Faster Convergence - Achieves stable position fix more quickly in challenging environments
Improved Performance in Tough Conditions - Works better under tree cover, near tall structures, or in weak signal areas

Feature	Single-frequency (L1)	Dual-frequency (L1+L5/L2)
Accuracy	~3-5 meters	<1 meter (up to cm-level with augmentation)
Ionospheric Correction	No	Yes
Multipath Resistance	Moderate	High
Cost	Lower	Higher

Applications

Single-frequency: Basic navigation, consumer devices (e.g., smartphones, budget trackers)
Dual-frequency: Precision agriculture, drone navigation, autonomous vehicles, surveying, and high-end IoT devices

Dual-frequency GPS modules provide superior accuracy and robustness, making them ideal for professional and high-precision use cases.

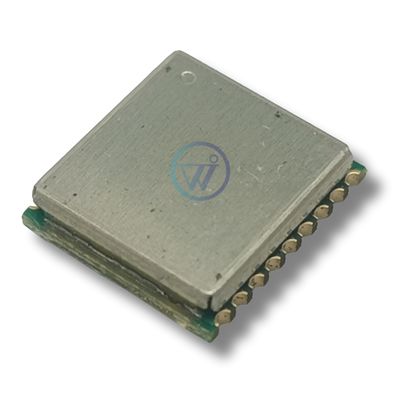

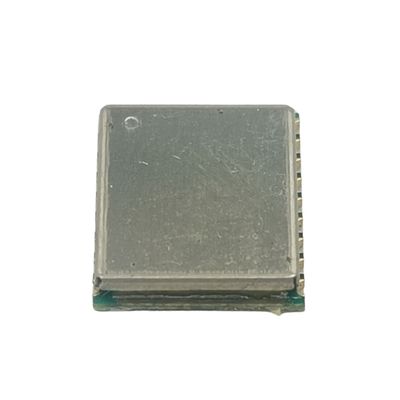

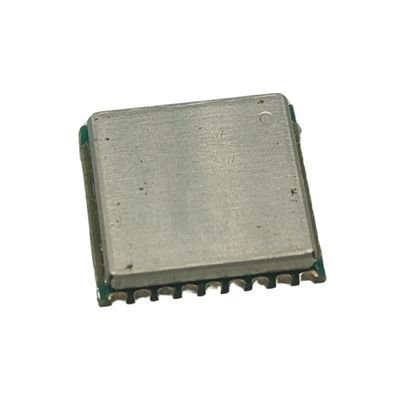

Product Images
